What Is a Safety Warning Label?

You are likely already aware that companies have a duty to warn consumers and employees about the potential risks of injury associated with using a specific product or machine. That’s where safety warning labels come into play.

Safety warning labels are labels placed on many products that alert consumers to the dangers of using the product beyond its intended use. Warning labels can be placed on the product itself, as a nameplate, or provided with the product in packaging materials.

Due to product liability law, there are many things that must be stated to absolve a company of any wrongdoing if a product was not used as intended, or if the consumer did not heed the information on the warning label.

Therefore, it is up to the manufacturer to decide which type of label is best for their product and for the consumers who will be using it.

3 Common Types of Safety Warning Labels

For starters, there are 3 main types of safety warning labels. These are specific to their uses and have different components and requirements.

Keep reading to learn more about the types of warning labels you may encounter.

1. Facility and Building Warning Labels

This is the most common type of safety warning label. This type of safety label warns people of common hazards that might exist in and around your property.

2. Emergency and Fire Exit Labels

Next, fire safety labels are an important part of any business’s fire prevention equipment. Warning labels should always be designed in such a way that they are very noticeable, with large, brightly colored type.

These should feature both type and directional devices so that people clearly understand where the exits are located.

3. Machine Warning Labels

Finally, it is important that any machinery with even the slightest chance of harming someone be labeled as a potential hazard. This includes any equipment that is heavy, mechanical, electrical, or has the potential to give off heat.

These types of labels should be placed so that they are easily seen by anyone who is either using the equipment or just walking past it.

So what are the benefits and purposes of these labels?

Major Benefits of Safety Warning Labels

In 2023, there were 2.6 million nonfatal workplace injuries and about 5,000 fatal injuries at the workplace. From protecting your customers and employees to saving money, safety warning labels are used for several purposes and offer many benefits. For instance, here are some benefits of safety warning labels.

Reduce Accidents

Whether a person is working in a given area or is simply a visitor, they should be aware of the potential for harm and how to avoid it. This can make your business far safer for all.

Plus, with the use of labels, the chances of avoiding payouts of workers’ compensation and damages from lawsuits are substantially lessened.

Enhance Compliance

Warning labels and safety decals are required by OSHA. As a result, you should always label appropriate hazards to stay in compliance with local, state, and national requirements.

Increase Visibility of Safety Equipment

What good is having a fire extinguisher and other safety equipment if you can’t readily find them? A safety label can make everyone aware of the location of a piece of equipment that might otherwise be overlooked in the event of an emergency.

Improve Training and Orientation

Safety labels are an excellent way to make new employees and others aware of where safety equipment is located and how it is used to its greatest advantage. This is especially important for someone who might not be familiar with the dangers of your business areas.

To achieve the best results from your labels, you need to understand how to properly use the elements in a label.

Helpful Visual Elements That Benefit Safety of Use

Obviously, the better the signage is, the better the chances are that it will be seen and danger averted.

There are 4 main visual elements you can use on your labels to effectively deliver your message.

1. Header Bar

The header bar is the colored strip across the top of the label that immediately signals the level of hazard. This part is often one of the first things a person notices, so it is crucial to be strategic when designing it.

Using standardized colors, the header bar frames the message and ensures people can quickly identify risk severity at a glance. It often contains other visual elements like the signal word and may include the safety alert symbol.

2. Signal Word

The signal word is a short, high-impact headline, usually one or two words, that immediately alerts the viewer to the level of hazard.

There are several types of signal words you can use, varying in severity:

DANGER – used for the most severe hazards that could result in serious injury or death.
WARNING – used for hazards that may cause significant injury if not avoided.
CAUTION – used for lower-level hazards that may still cause minor injuries or damage.
NOTICE – used for important information that isn’t directly related to safety but requires attention.
SAFETY INSTRUCTIONS – indicates that there are specific safety instructions.

By using bold fonts, uppercase letters, and high-contrast colors, signal words ensure that the seriousness of the message is communicated at first glance.

If you’re unsure which Signal Word to use in your safety label, use the infographic below.

Once you choose your headline, you should pick a corresponding symbol.

3. Symbols (Pictograms)

You’ve probably heard the saying that a picture is worth a thousand words. Well, the same goes for pictograms and symbols on safety warning labels!

Pictograms are one of the best ways to ensure everyone is aware of any hazards, as they are often universally recognized and make safety messages quick and easy to understand. Even if someone doesn’t speak the language on the label, symbols communicate danger effectively.

Examples include:

Flames to indicate fire hazards.
A lightning bolt for electrical shock risks.
A skull and crossbones for toxic substances.
A hard-hat symbol to remind workers of PPE requirements.

Symbols not only speed up recognition but also help bridge language barriers, making your workplace safer for diverse teams and visitors.

4. Word Message

When an image isn’t enough information, include a message that explains what the warning is for and how you can work to avoid the hazard.

This part of the label answers key questions:

What is the hazard? (e.g., “High Voltage Area”)
What is the consequence? (e.g., “Contact may cause serious injury or death”)
What should the person do? (e.g., “Keep out unless authorized and properly trained”)

The key is to keep this message clear, concise, and actionable. Overly technical language or long sentences may confuse the reader. Short, direct wording improves comprehension and response time.

In order to get the most out of your label, you need to know how to properly use these elements and create an effective design.

7 Tips for Creating Effective Safety Warning Labels

Your warning label isn’t helpful if your user cannot understand what it is trying to say. By following these 7 tips, you can create an effective safety warning label that protects your customers, employees, and your business.

1. Write Clearly and Concisely

In order to be sure that your warning is fully understood, it is recommended to write your warning clearly and concisely.

It is best to avoid any ambiguous or complicated wording and to write in an active voice. You want to keep your message short and to the point so there aren’t any misunderstandings.

Make sure that everyone who may use the product or machine has access to the information on the label. This can be done by offering the label in other languages, such as Spanish and French.

2. Select Signal Words

Not every hazard carries the same level of risk, so your label should reflect the seriousness of the situation. When selecting a signal word, think about urgency first, not just formatting.

A label that overuses “Danger” for minor risks can cause workers to tune warnings out, while one that downplays life-threatening risks can lead to costly mistakes.

The goal here is to align the label’s tone with the actual hazard. Save the most severe terms for critical risks, and use lower-tier words where a reminder is enough. This balance ensures that people pay attention when it matters most.

3. Use Pictograms & Symbols

Symbols and pictograms are powerful, but only when they’re applied consistently. Instead of thinking of them as one-off design choices, treat them as part of a visual safety language across your workplace or products.

That means:

Use the same set of approved icons across all labels.
Keep sizing and placement uniform so that workers always know where to look.
Avoid unnecessary or overly stylized graphics that could dilute meaning.

When your symbols look and feel consistent everywhere, people learn to recognize hazards faster, creating a safer and more intuitive environment.

If there is a possibility that the image might be misunderstood, you should follow it with a reinforcing message. This leads us to our next tip.

4. Provide Context, Not Just Warnings

A label that simply says “Caution” without explanation leaves too much to interpretation. Instead, think of your message as a quick guide to action.

Instead of just naming the hazard, provide context, such as why it’s dangerous, why it matters, and how to avoid it. For example:

Instead of: “Caution: Hot Surface”
Use: “Caution: Hot Surface. Allow equipment to cool before handling.”

By framing your message around clear consequences and prevention steps, you’re not just warning people; you’re equipping them to make safer choices in the moment.

5. Pick a Durable Material

Your warning label is important to the safety of your customers and employees, so you want to make sure it is durable. With that being said, you don’t want your message to fade or get scratched over time.

Therefore, you should always choose a tough material that can withstand outside elements and chemicals.

While creating your safety warning label, it is important to understand and comply with standards.

6. Comply With Safety Warning Standards

To avoid liabilities and getting sued, you have to comply with regulations and standards at the state and federal levels, as well as by specific organizations such as ANSI or OSHA. Additionally, staying consistent with these styles can also help improve users’ understanding and make it easy for them to notice warnings at a glance.

Compliance with these standards not only protects you but also builds credibility with your customers.

Here’s what you need to know.

American National Standards Institute (ANSI)

ANSI gives guidelines for creating safety signs for products inside the U.S. and Canada. Most warning labels use the ANSI warning header for equipment warning labels, high voltage warnings on electrical utilities, and personal protective equipment.

Using the pictograms, you can easily grab attention and include clear consequences and avoidance statements.

ANSI Color Codes

ANSI also defines a color system to help people quickly identify the type of hazard or safety information being presented:

Red (PMS 285) – Indicates a hazardous situation that can result in death, like fire protection devices, hazard signs, flammable liquid storage, barricade lighting, and stop controls.
Orange (PMS 151) – Indicates hazardous or energized machinery and equipment.
Yellow (PMS 109) – Indicates physical hazards (such as falling, tripping, or striking) and general caution, as well as storage for explosives, corrosives, or unstable materials.
Green (PMS 335) – Safety information, first aid, or safety equipment locations.
Blue (PMS 285) – Non-immediate safety information (e.g., property policies or mandatory safety gear requirements).
Purple (PMS 259) – End-user defined, but commonly used (often with yellow) to designate radiation hazards.
Gray, Black, White, and Black/White/Yellow Combinations – May be defined by the end-user, but are often used to support or supplement other safety messaging.

Occupational Safety and Health Administration (OSHA)

OSHA danger headings are used on many danger labels for machinery warnings and Arc Flash Warnings. This type of label is more traditional and therefore has more familiarity amongst workers.

Red – Danger
Orange – Warning
Yellow – Caution
Fluorescent Orange/Orange-Red – Biological hazard

International Organization for Standardization (ISO)

ISO (International Organization for Standardization) provides guidelines for safety labels that are typically used internationally, outside of the U.S. and Canada. They have symbol-only signs with three different styles for different purposes.

For instance, common symbol-only styles include:

Yellow – Triangular warning signs to identify any hazards that can lead to injury.
Red – This label has a red circle with a slash across it. It is a prohibition label that shows you what actions are prohibited to avoid any danger.
Blue – This circular mandatory action sign explains actions to take to avoid any hazards and stay safe. Typically contains white symbols in the blue circle.

7. Positioning & Punctuation

Your label text should be left-aligned, large enough to be easily legible, and written in both upper- and lower-case letters (avoid all caps).

Then your safety symbols should be positioned to the left of the warning text for quick recognition.

Header Bar Punctuation

Do not use punctuation in the colored header bar. An exception to this rule is that a triangle with an exclamation point (the “safety alert symbol”) may be placed at the left side of “DANGER,” “WARNING,” or “CAUTION” headers.

Exclamation Points

May or may not be used in the headline or opening sentence. Avoid overuse, as it reduces impact.

Reserve exclamation points for critical situations. In most cases, a period is preferred since the text typically communicates commands or information.

With these top 7 tips in your tool belt, it’s time to craft a custom safety warning label for your business.

Manufacturing Safety Warning Labels

Once your label design is finalized, the next step is ensuring it’s produced to the highest quality. A well-designed label will only be effective if it’s manufactured with the right materials and processes to withstand its environment.

When manufacturing your custom safety labels, keep these considerations in mind.

Material

Choose a material that matches the environment where the label will be placed. Labels must hold up under real-world conditions, like fading, peeling, or scratching, which can compromise both compliance and safety.

Here are a few common materials used for manufacturing labels.

Plastic

Plastic nameplates offer long-lasting durability, high-quality graphics, and flexibility for a wide range of industrial, commercial, and consumer applications.

Polycarbonate (Lexan®)

Polycarbonate is strong, impact-resistant, temperature-resistant, UV-stable, and flame-retardant. It is often available in clear or white, multiple textures, finishes (glossy, matte, satin, velvet), and thicknesses (.005”–.030”).

It can be manufactured to meet UL® or CSA-approved specifications.

Polyester (Mylar®)

Polyester is extremely durable, UV-resistant, chemical- and water-resistant, and stable under harsh indoor/outdoor conditions.

It is available in transparent or white, with various finishes, textures, and thicknesses (.003”–.010”).

Vinyl (PVC)

Rigid and durable, vinyl is often used indoors or outdoors with UV protection. It is available in many colors, finishes (glossy, velvet, matte), and special types like magnetic, fluorescent, reflective, or glow-in-the-dark. Adhesive options and mounting holes or slots are available.

Metal

Metal nameplates with warning labels are highly durable and ideal for environments that demand long-lasting identification and resistance to extreme conditions.

Aluminum

Lightweight, corrosion-resistant, and ideal for both indoor and outdoor use. Aluminum labels can be anodized, brushed, or painted for added durability and visual appeal.

Stainless Steel

Extremely strong, corrosion- and heat-resistant, and ideal for harsh environments. Stainless steel nameplates are perfect for industrial, marine, and chemical applications where exposure to moisture, chemicals, or extreme temperatures is expected.

Adhesives

Consider whether the label needs to be permanent, removable, or resistant to high heat or moisture, as the right adhesive depends on your application.

Pressure-sensitive adhesive (PSA) is the most common, and your manufacturer should recommend options based on factors like:

Permanent vs. repositionable
Pressure-sensitive vs. heat-activated
Flat vs. curved surfaces, smooth vs. rough (LSE adhesives work best on textured surfaces)
Indoor vs. outdoor use (UV/water resistance)
Exposure to chemicals or extreme temperatures
Need for opacity (clear vs. white adhesive)

Common adhesives include:

467MP: Excellent adhesion to metals and HSE plastics, strong resistance to humidity, chemicals, solvents, and temperature swings. Ideal for long-term bonding of nameplates, overlays, and rating plates.
468MP: Similar benefits, with a thicker adhesive layer for better grip on textured or irregular surfaces.

Printing

High-resolution printing ensures symbols and text remain sharp and legible, even from a distance. Partner with a printer who follows ANSI, OSHA, and ISO requirements to ensure your labels are printed to industry regulations.

Digital Printing

Digital printing offers several advantages, from short run times to cost efficiency. Labels can be cut into almost any shape to match your design needs, and they allow for personalized text, logos, or graphics to meet specific project specifications.

By combining digital printing with durable materials and careful design, you create safety warning labels that are not only compliant and visible but also flexible and visually striking.

Sub-Surface Printing

Sub-surface printing is when graphics are printed in reverse under transparent material. It protects the design from chemicals, abrasion, and wear, while backing with white ink enhances visibility. Thickness typically ranges from 0.005” to 0.030”.

By combining a strong design with durable manufacturing practices, you’ll create safety warning labels that remain effective, compliant, and protective for years to come.

Design the Perfect Safety Warning Label With Hallmark Nameplates

Keeping employees, guests, and visitors safe on your property is a top priority, and a well-designed safety warning label plays a critical role in achieving that goal. When labels are accurately designed, durable, and strategically placed, they help prevent accidents, clearly communicate hazards, and ensure compliance with safety regulations.

At Hallmark Nameplate, we have over 60 years of experience creating effective safety warning labels and know exactly what your project needs. We will work to not only meet your design expectations but also maintain standards.

Ready to get started on creating your labels? Request a free quote today!

A printed circuit board (PCB) assembly could be just the thing you need for your business. But in order to really understand the purpose of a printed computer circuit board and how a computer circuit board works, you have to understand the basic technology behind the product.

In this guide, we’ll break down the fundamentals of computer circuit boards, explore the types and components involved, and explain why investing in a quality PCB assembly can give your business a competitive edge.

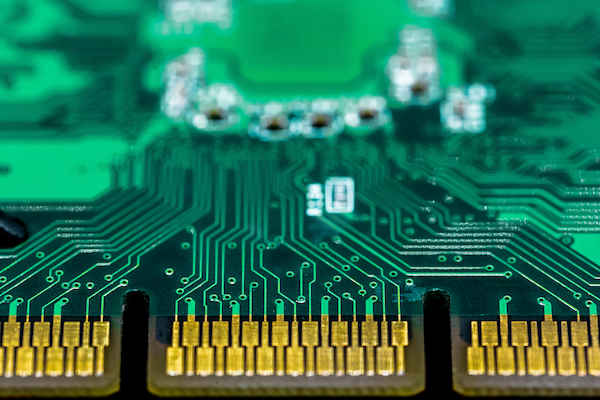

Understanding the Basics: What Is a Computer Circuit Board?

Electric circuits are made up of wires and other components, such as light bulbs, transistors, computer chips, and motors. Conductive materials make up the wires that connect the components of the circuits.

Copper and aluminum are most frequently used as conductors, but gold is sometimes used for its superior resistance to corrosion.

The Building Blocks of an Electric Circuit

To understand how a computer circuit board works, it’s helpful to understand the core principles of electric circuits. At their simplest, electric circuits are composed of:

Conductive materials like copper or aluminum
Power sources such as batteries or external current
Loads (components like LEDs, motors, or microchips)
Control elements like switches and resistors

The key to any functioning electronic device is the ability to create a closed loop that allows current to flow and perform work.

Different Types of Circuits

In the world of electronics and electrical engineering, understanding the various types of circuits is essential to designing and troubleshooting any system, especially when working with a computer circuit board. Circuits serve as the foundation for transmitting power or data and dictate how electrical energy flows through a system.

Broadly speaking, circuits fall into two categories: power circuits and electronic circuits. Each type serves a distinct purpose and plays a vital role in our homes, businesses, and the technology we use daily.

Power Circuits

Power circuits transfer and control large amounts of electricity. Examples of power circuits are power lines and residential or business wiring systems.

The major components of power circuits are generators at one end and lighting systems, heating systems, or household appliances at the other end. Power lines, transformers, and circuit breakers are in between the two.

Electronic Circuits

Electronic circuits, on the other hand, are responsible for processing and transmitting information. These circuits operate at much lower voltages and are the backbone of all digital and analog devices such as computers, radios, TVs, radars, and cell phones.

Common Configurations of Circuits

Understanding how circuits are configured is crucial for both power and electronic applications. The design and layout affect current flow, voltage distribution, and overall functionality.

Closed Circuit

If you’re working with a closed circuit, you’re working with a complete path for current to flow from the power source, through the load, and back.

Open Circuit

An open circuit means the path is broken or incomplete, preventing current from flowing. It typically indicates a switch is open, a wire is disconnected, or a component has failed.

Short Circuit

A short circuit is a path of low resistance and can occur when two bare wires in a circuit touch each other. This can be hazardous, leading to overheating, component damage, or fire, which is why circuit protection is critical in both power and computer circuit board designs.

Series Circuits vs. Parallel Circuits

Both series and parallel circuits are used in power and electronic applications, but each behaves differently in terms of current flow and voltage distribution.

For example, resistors may be arranged in series to divide voltage, while capacitors might be placed in parallel to increase total storage capacity.

Series Circuit

In a series circuit, the same current flows through every component—think of a string of Christmas lights! If one goes out, they all go out; no current will flow, and none of the lights will go on.

Parallel Circuits

When you think of a parallel circuit, think of blood vessels that branch off from an artery and connect to a vein. It’s the same idea with wires; one acting as the “artery” and one acting as the “vein” with smaller wires attached. The smallest wires have the same voltage applied, but different amounts of current flowing through them, depending on the individual wiring.

Circuit Classifications

One way that circuits are classified is regarding the current flow.

Direct Current

Some of the earliest ones to ever exist were powered by a battery, allowing for a current to flow steadily in one direction. This is known as direct current (DC). Electronic circuits generally run on DC, with AC converted internally.

Alternating Current

To accommodate the need for power to travel over long distances, the alternating current, or AC, was invented by engineer Nikola Tesla. AC currents are always changing and reverse directions continuously.

With this type of current, it is possible to use transformers to change the level of voltage, which is necessary for electronic circuits.

What Does This Have To Do With Printed Computer Circuit Boards?

The purpose of a printed circuit board is to hold an electronic circuit together. When all the different components are attached to it, it is called a printed computer circuit board assembly, or PCBA.

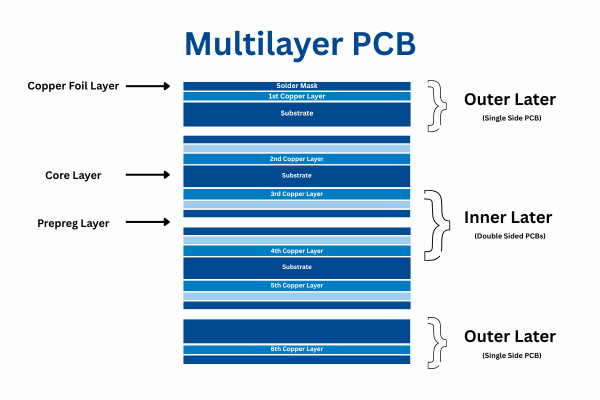

A multilayer PCB typically contains about ten stacked layers, enabling complex 3D circuitry. That being said, the number of layers can exceed 30! Talk about complex PCBs.

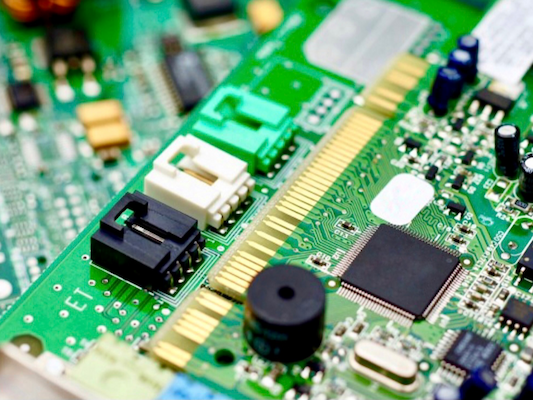

Common Components of a Circuit Board

Components soldered onto the PCB are essential for conducting electricity on the boards. Here are some of the components included on a computer circuit board.

One of the best ways to understand the products we create is to study the basic components. The world of circuits and circuit boards is vast, and there is always something new to learn.

This knowledge is valuable whether you’re exploring a new advancement or managing an existing PCB project.

1. Transistors: The Building Blocks of Logic

Transistors are arguably the most crucial active components on a computer circuit board. They function as tiny electronic switches or amplifiers that can turn current on or off and control the flow of electrical signals. A single microprocessor may contain billions of transistors packed into an integrated circuit.

Key Functions:

Switching digital signals on and off
Amplifying electrical signals
Enabling logical operations in CPUs and microcontrollers

Applications:

Core processors
Memory chips
Voltage regulators
Signal modulators

Without transistors, digital computing would not be possible. They form the foundation of all modern electronics, including computers, smartphones, and embedded systems.

2. Resistors: Controlling Current Flow

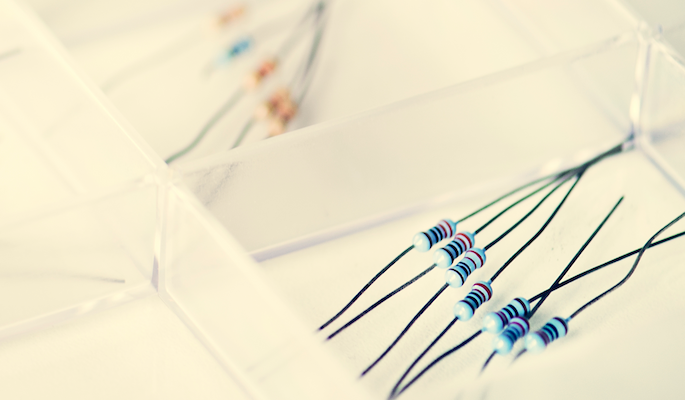

Resistors are passive components that introduce a specific amount of resistance into the circuit. Their primary role is to limit the flow of electrical current, divide voltages, and protect sensitive components from excessive power.

Key Functions:

Regulate the current to safe levels
Provide a voltage division
Set bias points for transistors
Reduce signal noise

Common Types:

Fixed resistors
Variable resistors (potentiometers)
Surface-mount resistors (for compact designs)

On a computer circuit board, resistors are strategically placed to ensure consistent and safe power distribution, especially in logic circuits and analog signal pathways.

3. Capacitors: Storing and Releasing Energy

Capacitors are components that temporarily store electrical energy and release it when needed. They are widely used in computer circuit board designs to stabilize power supplies, filter signals, and maintain stable voltage levels.

Key Functions:

Store and discharge electrical energy
Filter high-frequency noise
Stabilize voltage and power flow
Enable timing circuits

Types Used in PCBs:

Ceramic capacitors (small, stable)
Electrolytic capacitors (higher capacity)
Tantalum capacitors (compact with good frequency response)

Capacitors are essential in both digital and analog sections of a PCB, improving overall performance and preventing signal degradation.

4. Inductors: Managing Magnetic Energy

Inductors are passive components that store energy in a magnetic field when current flows through them. They are less common in purely digital logic sections, but essential in power and RF circuits.

Key Functions:

Block high-frequency AC signals
Store energy in DC-to-DC converters
Reduce electromagnetic interference (EMI)

Applications:

Power supply filtering
Radio-frequency (RF) applications
Noise suppression in switching circuits

In large or high-frequency computer circuit boards, inductors ensure cleaner signal transmission and stable power delivery, particularly in advanced computing and telecommunications equipment.

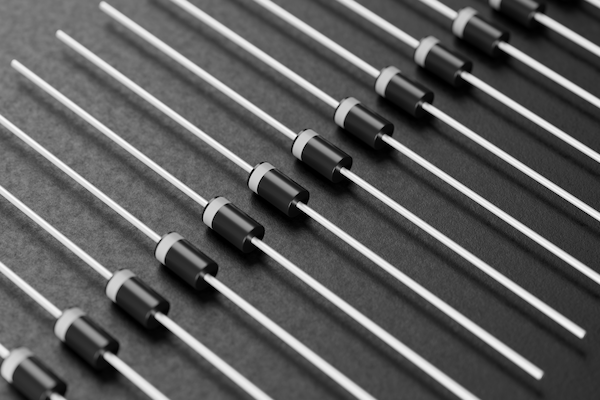

5. Diodes: Directing Current Flow

Diodes are semiconductor devices that allow current to flow in one direction only. They act as gatekeepers, protecting other components on the computer circuit board from voltage spikes or reverse polarity.

Key Functions:

Prevent reverse current flow
Protect circuits from voltage surges
Convert AC to DC in rectifiers
Emit light in LEDs

Common Types:

Zener diodes (for voltage regulation)
Light-emitting diodes (LEDs)
Schottky diodes (for high-speed switching)

Whether serving as simple protection devices or enabling signal control, diodes play a vital safety and efficiency role in PCB architecture.

CAD

The most advanced designers of computer circuit boards use computer-aided design programs, or CAD. These tools provide the most accurate way to design circuit boards because of the complexity of digital computers, as they use millions of transistors.

Types of PCBs

There are several different types of PCBs you can choose from, depending on your planned usage. A computer circuit board specialist can help you determine which type is right for you, depending on the application of your PCB.

1. Single-Sided PCBs

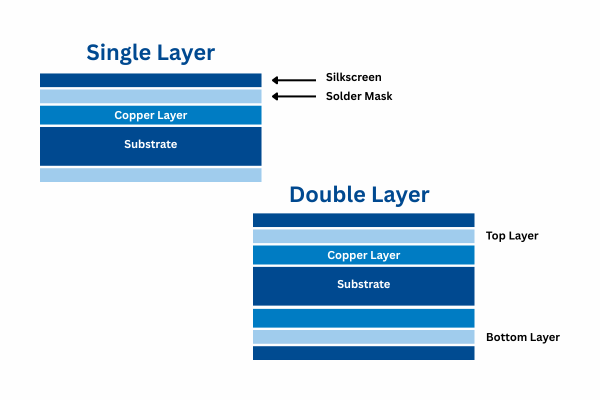

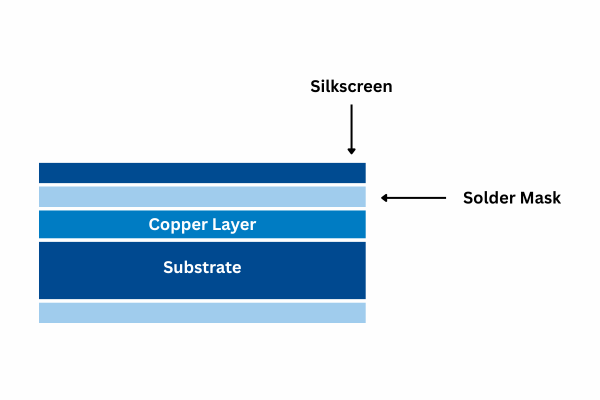

Single-sided PCBs are the simplest and most cost-effective type of computer circuit board. They consist of one layer of conductive material, typically copper, on one side of an insulating substrate.

Key Features:

Components and traces are mounted on a single side
Ideal for straightforward, low-density circuit designs
Easy to manufacture and mass-produce

Applications:

Calculators
LED lighting systems
Power supplies
Consumer electronics

Best for low-cost applications that don’t require advanced functionality or high-speed signal transmission.

2. Double-Sided PCBs

As the name suggests, double-sided PCBs have conductive copper layers on both the top and bottom sides of the board. This allows for more complex circuitry and higher component density than single-sided boards.

Key Features:

Vias (plated holes) connect circuits on both sides
Increased design flexibility and functionality
Supports surface-mount and through-hole components

Applications:

HVAC systems
Automotive dashboards
Industrial control systems
Amplifiers

Best for mid-range applications that require more complex routing and increased component space.

3. Multi-Layer PCBs

Multi-layer PCBs consist of three or more conductive layers stacked together, separated by insulating materials. These boards are essential for advanced electronics where high-speed signals and compact design are critical.

Key Features:

Offers greater circuit density and reduced board size
Minimizes electromagnetic interference (EMI)
Supports high-performance, high-speed processing

Applications:

Smartphones and tablets
Data storage devices
Servers and networking equipment
Medical imaging systems

Best for high-tech applications that require compact designs, high-speed signal integrity, and complex functionality.

4. Rigid PCBs

Rigid PCBs are made from solid, inflexible substrates (often fiberglass-reinforced epoxy) that retain their shape over time. They are the most common form of computer circuit board used in industrial and commercial applications.

Key Features:

Extremely durable and structurally stable
Excellent thermal resistance and mechanical strength
Long lifecycle

Applications:

Military-grade hardware
Aerospace controls
Consumer electronics
Robotics

Best for applications that demand durability and structural integrity, especially in high-vibration or high-stress environments.

5. Flex PCBs (Flexible Circuits)

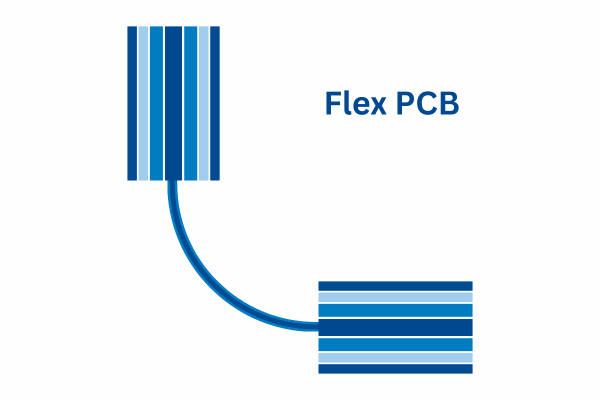

Flexible PCBs are made from materials like polyimide that allow the board to bend and twist without damaging the circuits. They’re ideal for small or oddly-shaped devices where rigid boards are not practical.

Key Features:

Lightweight and space-saving
Can flex during use or installation
Reduces assembly time and complexity

Applications:

Wearable technology
Foldable smartphones
Camera modules
Medical devices

Best for compact, lightweight products with dynamic movement or tight enclosures.

6. Rigid-Flex PCBs

Rigid-flex PCBs combine the benefits of both rigid and flexible boards into a single, hybrid solution. They contain both flexible layers and rigid sections, allowing complex 3D designs and improved durability.

Key Features:

Enhanced reliability with fewer connectors and interconnects
Reduces weight and space
Increases design versatility

Applications:

Military avionics
Medical implants and diagnostic equipment
Consumer electronics
Aerospace and satellite systems

Best for devices requiring high reliability, rugged performance, and space-efficient design.

7. High-Frequency PCBs

High-frequency PCBs are specially designed to carry signals at high speeds with minimal loss or interference. They use specialized materials like PTFE (Teflon) to maintain signal integrity.

Key Features:

Designed for frequencies in the hundreds of MHz or higher
Low dielectric constant and minimal signal loss
Precise impedance control

Applications:

Microwave systems
Satellite communications
GPS technology
RF amplifiers and antennas

Best for high-speed, high-frequency communication systems where performance and accuracy are critical.

8. Aluminum-Backed PCBs

Aluminum PCBs use a metal-backed substrate for improved thermal management and electromagnetic shielding. This type of computer circuit board is ideal for high-power applications where heat dissipation is a concern.

Key Features:

Excellent heat dissipation and mechanical stability
Reduces hot spots and extends component life
Improved durability under high-stress conditions

Applications:

LED lighting systems
Power converters
Automotive electronics
Solar panel controllers

Best for high-power applications or environments with excessive heat or electromagnetic interference.

Manufacturing Process of A Computer Circuit Board

The manufacturing of a computer circuit board is a detailed and highly precise process that ensures the board can support complex computing functions.

These boards, often multi-layered, serve as the backbone of computers, housing and interconnecting critical components like CPUs, memory, and graphics chips. Here’s a step-by-step overview of how they’re made.

1. PCB Design and Engineering

Everything starts with a digital blueprint. Engineers use CAD (Computer-Aided Design) software to design the layout of the computer circuit board, mapping component placement and signal routing across multiple layers.

2. Layer Stack-Up and Lamination

Computer circuit boards are usually multi-layered, with several layers of copper and insulating material.

Layers are stacked in a specific order, aligned precisely, and bonded together using heat and pressure. This forms the basic board structure.

3. Imaging and Etching

Each layer is coated with a light-sensitive film and exposed to UV light through a mask of the circuit pattern. The exposed areas harden, and the unexposed areas are removed.

Then, chemical etching removes unwanted copper, leaving behind the precise copper traces that form the circuit pathways.

4. Drilling

Tiny holes, called vias, are drilled through the board to connect the different layers or allow for component leads.

High-speed, computer-controlled drilling machines are used to ensure micrometer-level accuracy, especially important in high-performance computing boards.

5. Copper Plating

Once holes are drilled, they are plated with copper to make them electrically conductive. This is critical for allowing signals to pass between layers in a multi-layer computer board.

6. Solder Mask Application

A solder mask is applied to insulate the copper traces and prevent solder from bridging during assembly.

This is typically green, but other colors may be used in custom boards. Openings are left only where soldering is required.

7. Silkscreen Layer

Component labels, part numbers, logos, and other identifiers are printed on the board in white or contrasting ink. This silkscreen layer helps guide the assembly and repair processes.

8. Surface Finish

The exposed copper pads receive a surface finish to improve solderability and prevent oxidation.

Common finishes for computer PCBs include:

ENIG (Electroless Nickel Immersion Gold) – offers excellent conductivity and durability.
HASL (Hot Air Solder Leveling) – a cost-effective option.
OSP (Organic Solderability Preservative) – eco-friendly and used in high-volume boards.

9. Component Mounting

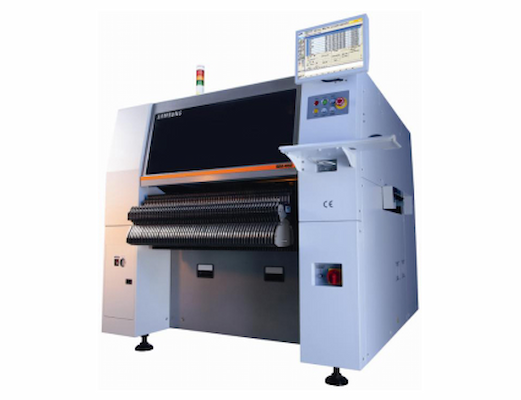

Now the board is ready for components. Using automated machines, thousands of tiny components, like processors, transistors, memory modules, resistors, and capacitors, are precisely placed on the board.

There are two primary mounting technologies used in PCB assembly.

Surface-Mount Technology (SMT)

With SMT, components are mounted directly onto the surface of the board without the need for drilled holes. This technique supports compact, high-density designs and is perfect for modern electronics like smartphones, computers, and wearables.

SMT allows for faster assembly and greater automation, reducing production time and costs.

Through-Hole Technology (THT)

In THT, component leads are inserted into pre-drilled holes and then soldered from the opposite side of the board. While this method takes up more space, it provides superior mechanical strength and is often used for components that may endure mechanical stress.

This includes:

Power connectors
Transformers
Large capacitors

Together, these mounting techniques enable manufacturers to meet a wide variety of design requirements for performance, durability, and size.

10. Soldering

Soldering is the process that permanently attaches electronic components to the circuit board by melting a metal alloy (solder) to form strong electrical and mechanical connections. The type of soldering used depends on the components and layout of the board.

Selective Soldering

Selective soldering uses a precise, localized stream or “bubble” of molten solder to attach components in specific areas, ideal for densely populated boards with a mix of surface-mount and through-hole parts.

This method allows for pinpoint accuracy, minimizing heat exposure to surrounding components and reducing the risk of bridging connections.

Wave Soldering

Wave soldering is commonly used for through-hole components. In this method, the underside of the board is passed over a flowing “wave” of molten solder that touches only the exposed leads and pads.

It’s efficient for soldering multiple joints at once and is well-suited for high-volume production.

11. Conformal Coating

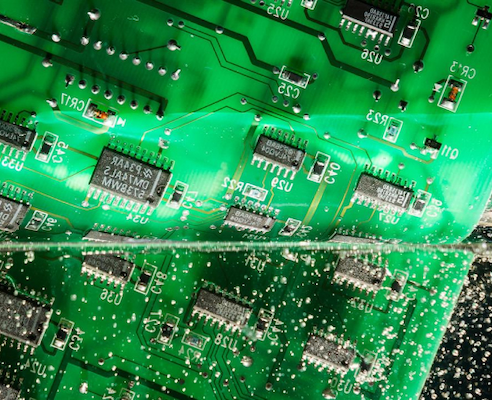

Now that everything is in place, it is time to seal it with a coating to ensure longevity. This adds minimal thickness and weight while protecting all critical components.

12. Inspection and Testing

Rigorous quality checks are performed. This may include:

Automated Optical Inspection (AOI) – for detecting defects like misaligned components.
X-Ray Inspection – for verifying solder joints under large chips.
Functional Testing – to confirm the board works as intended.

High-end boards may also go through burn-in testing to simulate heavy usage.

13. Final Cleaning, Packaging, and Shipping

The finished circuit board is cleaned to remove any flux residue or contaminants.

It’s then packaged in anti-static materials and shipped to computer manufacturers for integration into laptops, desktops, and servers.

Design and Manufacture Your PCB With Hallmark Nameplate

At Hallmark Nameplate, we specialize in Printed Circuit Board Assembly (PCBA) services tailored to your business requirements. With decades of experience and state-of-the-art equipment, we provide high-quality solutions for clients in healthcare, defense, consumer electronics, and beyond.

We’re here to guide you through every step, from design consultation to final assembly, ensuring that your computer circuit board meets all technical standards and performance goals.

Find the perfect solutions for your needs – request a FREE quote today!
